Product Brand: USA PRODUCTS

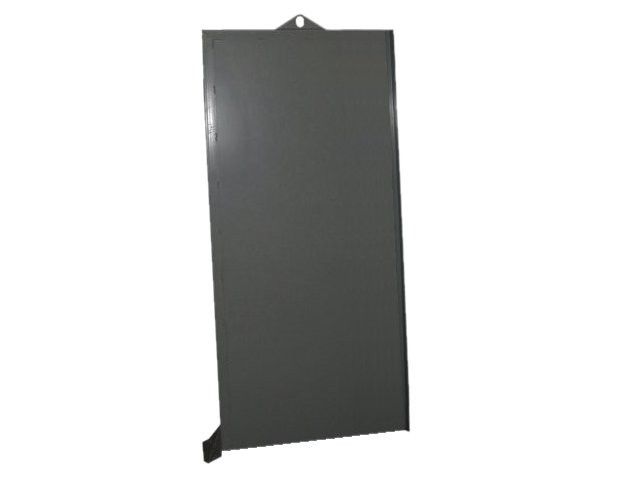

Firewall Barrier – Fire Resistant Wall Panel – 2 Cylinders Deep – 1 Hour Rated (1.25x28x75), This product meets OSHA regulation 1926.350(a)(10) -1/ea

SKU: UPR-FWFNFS
Unit of Measure: EACH

$2,259.60

Selling fast! Over 182 people have this in their carts
Add to quote
Reference NumberFWFNFS
MPNFWFNFS
Unit of MeasureEACH
Minimum Order Quantity1
Product dimensions:

1.25″w x 28″d x 75″h
OSHA regulation: This product meets OSHA regulation 1926.350(a)(10) stating that “Oxygen cylinders in storage shall be separated from fuel-gas cylinders or combustible materials (especially oil or grease) … by a noncombustible barrier at least 5 feet (1.5 m) high having a fire-resistance rating of at least one-half hour.”
Firewall Barrier Features:

  • 1″ thick Marinite I™ lab 1 hour certified fire barrier material encased in a fully welded 14 gauge steel plate shell
  • Continuous rectangular tube frame around full circumference
  • Meet and exceed NFPA and CGA requirements for cylinder fire separation partitions of oxidizing agents and flammable gasses
  • Mounts to exterior walls and floor with pre-drilled mounting brackets
  • Lift hook plate supplied for installation positioning
  • Quality powder-coat paint finish for long service life & chemical resistance
  • Can be used with USA Safety barricade cylinder racks, or can be used as a wall and floor mounted stand alone unit
  • Ships by LTL freight truck
  • Made in the USA using American steel and labor
  • Product weight: 180 lbs

This fire wall barrier uses 1″ thick 1 hour rated Marinite I™ fireblock material that is specifically designed to separate oxygen/fuel cylinders. Fire partition meets and exceeds NFPA and CGA requirements for cylinder fire separation partitions of oxidizing agents and flammable gases. The firewall mounts to exterior walls and floor with 5 pre-drilled mount holes. It includes a lift hook plate for installation positioning. The fully welded panel is coated with exterior grade powder-coat paint for durability. The product is made in the U.S.A. using American steel and labor. Fire wall barrier dimensions 1.25″ x 28″ x 75″.

UNSPSC 46191500
